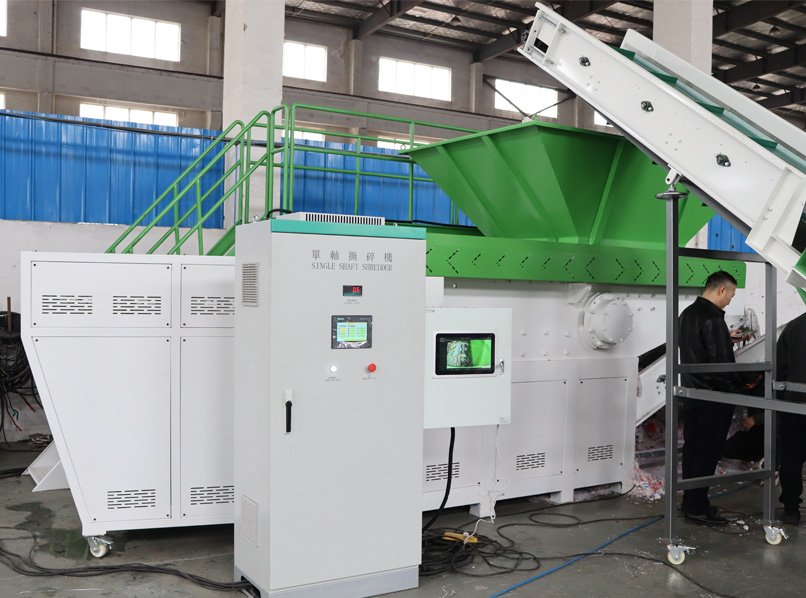

RSS1-single shaft shredder is used to shred big size plastic materials like baled LDPE film, PP jumbo bag,HDPE bottles,containers,pipes,lumps,etc.Single-shaft shredder is consists of a motor, a reducer with rigid gears, a rotary shaft, imported rotary knife, fixed knife, frame, working platform, hydraulic ram and an independent electrical control cabinet.
Our Plastic Single Shaft Shredder is used to shred and grind waste plastics like PE film,PP woven bag,HDPE lumps,other big size plastic materials,etc.

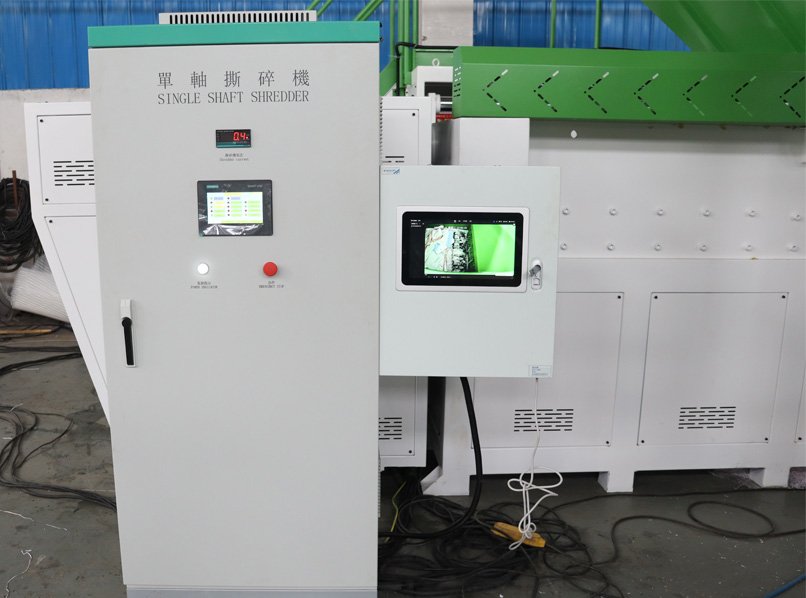

RETECH single-shaft shredder is consists of a motor,a reducer with rigid gears, a rotary shaft, imported rotary knife, fixed knife, frame, working platform, hydraulic ram and an independent electrical control cabinet.Fixed knives are installed on the frame behind the solid rotary shaft where the moving knives are bolted. Moving knives are specially designed into four-angel shape, when blunt customers could change the angel for recycling using. Moving knives are installed by screws, which is convenient for future maintenance. A hydraulic cylinder drove by hydraulic ram continually pushes the material chamber moving back and forward to get the material multi-angel shredding. Two travel switches are fitted near the side jampans to control the movement. A screen mesh is needed sometimes to ensure materials shredded even further. Single-shaft shredder is controlled by an independent electrical cabinet equipped with PLC system. The machine features start, stop, reverse functions. Also it is fitted with automatic overload return mechanism to prevent damage to working parts.Our plastic shredder is working to process different kinds of plastic materials like soft plastic PP PE film,woven bag,raffia,also for shredding solid hard plastic materials like HDPE PP lumps,containers,bulks,etc.
Single shaft shredder,PP PE film shredder,HDPE bottle shredder,Plastic big lumps shredder. Please send your photos of plastic first to check,then we could recommend a suitable model shredder machine.
HDPE bottle tube shredder
PP raffia woven bag shredder
Plastic lumps shredder
Adjust plastic flake size,usually 40-60mm for film,10-12mm for rigid.Shredded plastic film flakes could using for plastic washing or film pelletizing machine.
Use world famous brand parts,like Siemens motor,SKF bearing,SKD-11 blades,etc.
